drilling truck cylinder Sold to Turkey

This article mainly introduces:

Turkey hydraulic cylinder,drilling truck cylinder manufacturer,drilling truck cylinder

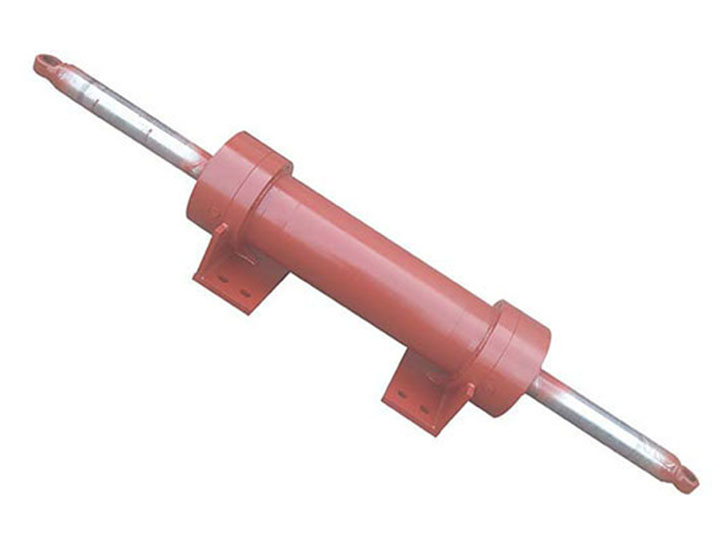

(Turkey drilling truck cylinder,produced by Hengyu Group）

drilling truck cylinder are widely used in Turkey，because of high work efficiency，long service life，smooth movement.So our company has designed drilling truck cylinder for customers from Turkey.

Introduction to drilling truck cylinder:

The viscosity of the working oil used in the drilling truck cylinder is 29~74mm2/S, and ISO VG46 anti-wear hydraulic oil is recommended. Working oil temperature within the range of -20~80. C. When the ambient temperature and service temperature are low, the oil with lower viscosity can be selected.

If the drilling truck cylinder operation failure, you can start from these aspects to troubleshoot: (1) the hydraulic system control pressure is too low. The throttling resistance in the control line may be too large, the flow valve is improperly adjusted, the control pressure is inappropriate, and the pressure source is disturbed. At this time, the control pressure source should be checked to ensure that the pressure is adjusted to the specified value of the system; (2) Air enters the hydraulic system. Mainly because there is a leak in the system. At this time, check the liquid level of the hydraulic tank, the seals and fittings on the oil suction side of the hydraulic pump, and whether the oil suction filter is too dirty. If so, the hydraulic oil should be replenished, seals and fittings should be treated, and the coarse filter element should be cleaned or replaced. (3) The initial action of the drilling truck cylinder is slow. In the case of low temperature, the hydraulic oil viscosity is large, poor flow, resulting in slow drilling truck cylinder action. The improvement method is to replace the hydraulic oil with better viscosity and temperature performance If the drilling truck cylinder is weak and cannot push the load, please check the internal leakage problem. The internal leakage of the drilling truck cylinder includes the leakage caused by excessive wear of the drilling truck cylinder block seal, the piston rod and the seal cover seal and the piston seal. The cause of sealing leakage between the piston rod and the seal cover is that the seal is wrinkled, squeezed, torn, worn, aging, deterioration, deformation, etc., and a new seal should be replaced at this time. The main cause of excessive piston seal wear is improper adjustment of the speed control valve, resulting in excessive back pressure and improper seal installation or hydraulic oil contamination. The second is that foreign bodies enter the assembly and the quality of sealing materials is not good. The result is that the action is slow and weak, and in serious cases, it will cause damage to the piston and drilling truck cylinder, and the phenomenon of "pulling the drilling truck cylinder" appears. The treatment method is to adjust the speed control valve, and the necessary operations should be done according to the installation instructions.

In order to ensure the service life of the drilling truck cylinder, the hydraulic system must be set up effective filtration to prevent pollution, the cleanliness of the oil should meet the ISO4406 standard, and the quality of the filtration should also meet the corresponding standards in ISO. The grade requirements of the filter are performed according to the actual working conditions of the system, but the minimum requirements are not less than 19/15 in ISO4406, that is, 24μ (β10≥75) in ISO4572.

The advantages and disadvantages of the drilling truck cylinder: the surface of the drilling truck cylinder by painting, coating protection treatment, bright luster is not easy to rust, all raw materials of the drilling truck cylinder through the top heat treatment, high manufacturing precision, belongs to the precision machinery, has a simple structure, stable quality, high mechanical efficiency, easy to achieve automation and many other advantages. However, hydraulic technology also has the shortcomings of oil leakage, oil temperature change affecting the control of running speed, noise, expensive cost and high maintenance cost.

Answers to some questions about drilling truck cylinder:

What is the rated pressure of the general cylinder?
This depends on the model of the cylinder, 1. The rated pressure of the light tie rod cylinder is 7 series 7MPa and 14 series 14MPa. 2. Rated pressure of engineering cylinder 16MPa. 3. Rexroth type metallurgical cylinder rated pressure 250MPa.

What is the difference between hollow and solid oil cylinders?
Hollow solid cylinder, according to conventional understanding, refers to whether the piston rod is solid or hollow. General ordinary hydraulic cylinder, the piston rod is solid structure. Hollow hydraulic cylinder refers to a hollow piston rod structure of the hydraulic cylinder, see the attached figure. Piston rod hollow function: 1, the piston rod hollow, the middle can be threaded rod. For example, the clamping cylinder with a sawing machine, the piston rod center threading rod, part of the stroke through manual, part of the stroke hydraulic automatic walk. 2, the hollow hole of the piston rod can be used to direct the oil circuit to achieve special oil circuit. 3, the cylinder is relatively large, the piston rod is relatively large, and the stroke is longer, in this case, the piston rod is hollow to reduce the movement friction and lateral force.
